14′ & 16′ Model 9,990# GVWR with 6K drop axles, 18′ Model 12,000# GVWR or 14,000# GVWR with 7K drop axles, heavy duty jack, flip-up ramps, 16′ cross member spacing.
Models: 14TSLWB 16TSLWB 18TSLWB
|

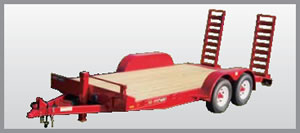

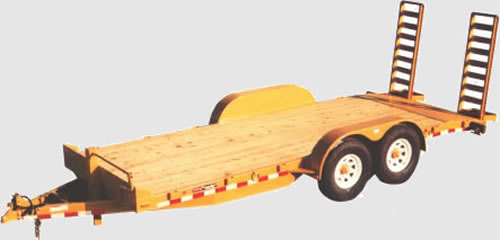

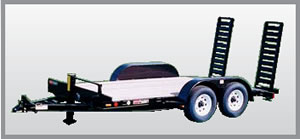

Skid Loader Series Flatbed Trailer Specifications |
||
|
Deck Length |
14′ & 16′ |
18′ |
|
Overall Width |
102″ |
102″ |
|
Width Between Fenders |
81″ |
81″ |
|
Axles |
ULube 2- 6K Drop |
U-Lube 2 – 7K Drop |
|
Brakes On All Axles |
Electric |
Electric |
|
Tire Size |
14′- 225/75R15 16′- 225/75R15 or 235/80R16 |
235/80R16 LRD or 235/85R16 LRG |
|
Pattern |
8 on 6-1/2″ |
8 On 6-1/2″ |
|
Adjustable Coupler |
Standard |
Standard |
|
Hitch Size |
2-5/16″ or Lunette Eye |
2-5/16″ or Lunette Eye |
|
Hitch Height |
13″ – 21″ |
14″ – 22″ |
|
Bed Height |
14′ – 20″ 16′ – 20″ or 22″ |
23″ |
|
GVWR |
14′ – 9,990# 16′ – 9,990# or 12,000# |
12,000# or 14,000# |
|
Payload Capacity (Average) |
14′ – 7,700# 16′ – 7,350# or 9,200# |
9,000# or 11,000# |
|
Floor |
2″ treated wood |
2″ treated wood |
|
Front Jack |
12,500# |
12,500# |
|
DOT Lighting |
Standard |
Standard |
|
Break-Away Kit with Battery |
Standard |
Standard |
|
Cross Members |
3″ Channel on 16″ Center |
3″ Channel on 16″ Center |
|
Frame Rails |
5″ Channel |
6″ Channel |
|
Stake Pockets |
Standard |
Standard |
|
Flip-Up Ramps |
Standard |
Standard |
|
Mesh Tailgate |
Option |
Option |
|
Full Primer & Paint |
Standard |
Standard |
|
Three-Year Warranty |
Standard |
Standard |
|
Sealed Beam Tail Lights |
Standard |
Standard |
|
D-Rings |
6 Standard |
6 Standard |
* Specifications subject to change.
Trailer Specifications Sheet – View Specificaitons For All Trailers (PDF document)
Model Numbering Explanation.
