9,990# GVWR with 6K axles, 15” radials, 8 bolt hubs, 5” channel frame and tongue.
Models Available: 18TFMWS 18TFMWB 18TFMSB 20TFMWS 20TFMWB
|

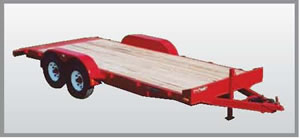

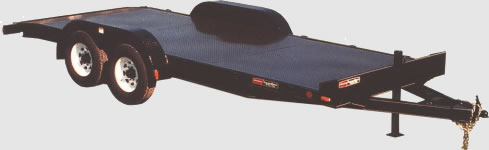

Frame Medium Series Flatbed Trailer Specifications |
|
|
Deck Length |
18’ & 20’ |
|
Overall Width |
102” |
|
Width Between Fenders |
81” |
|
Axles |
U-Lube 2 – 6,000# |
|
Brakes On All Axles |
Electric |
|
Tire Size |
225/75R15 Radial LRD |
|
Pattern |
8 On 6-1/2” |
|
Adjustable Coupler |
Option |
|
Hitch Size |
2-5/16” Ball Coupler |
|
Hitch Height |
18” |
|
Bed Height |
24” |
|
GVWR |
9,990# |
|
Payload Capacity (Average) |
7,400# |
|
Floor |
12 Ga. Steel Tread Plate or 2” Treated Wood |
|
Front Jack |
7,000# |
|
DOT Lighting |
Standard |
|
Break-Away Kit with Battery |
Standard |
|
Cross Members |
3” Channel on 24” Center |
|
Frame Rails |
5” Channel |
|
5’ Ramps |
Standard |
|
Stake Pockets |
Standard |
|
Flip-Up Ramps |
Option |
|
Mesh Tailgate |
Option |
|
Full Primer & Paint |
Standard |
|
Three-Year Warranty |
Standard |
|
Sealed Beam Tail Lights |
Standard |
|
D-Rings |
2 Rings |
* Specifications subject to change.
Trailer Specifications Sheet – View Specificaitons For All Trailers (PDF document)
Model Numbering Explanation.
