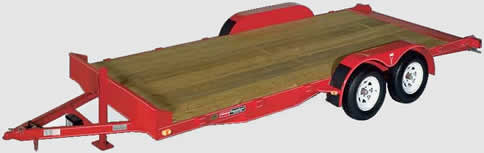

Frame Standard Series Flatbed Trailer

Frame Standard Series Flatbed Trailer

Frame Standard Series Flat-bed Trailer

Frame Standard Series Flat-bed Trailer

7,000# GVWR, 4”channel tongue, 15” radial tires.

Models Available: 16TFSWS  18TFSWS  18TFSWB  18TFSSB   18TFRSB

Frame Standard Series Flatbed Trailer Specifications

Deck Length

16’ & 18’

Overall Width

102”

Width Between Fenders

81”

Axles

U-Lube 2 – 3,500#

Brakes On All Axles

Electric

Tire Size

205/75R15 Radial LRC

Pattern

5 On 4-1/2”

Adjustable Coupler

Option

Hitch Size

2-5/16” Ball Coupler

Hitch Height

18”

Bed Height

22”

GVWR

7,000#

Payload Capacity (Average)

4,900#

Floor

12 Ga. Steel Tread Plate or 2” Treated Wood

Front Jack

7,000#

DOT Lighting

Standard

Break-Away Kit with Battery

Standard

Cross Members

2” X 3”Angle on 24” Center

Frame Rails

3” X 5” Angle

5’ Ramps

Standard

Stake Pockets

Standard

Flip-Up Ramps

Option

Mesh Tailgate

Option

Full Primer & Paint

Standard

Three-Year Warranty

Standard

Sealed Beam Tail Lights

Standard

D-Rings

2 Rings

* Specifications subject to change.

Trailer Specifications Sheet – View Specificaitons For All Trailers (PDF document)

Model Numbering Explanation.
