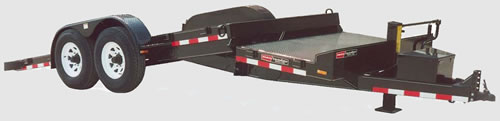

12,000# GVWR or 14,000# GVWR with 7K drop axles, 12 volt electric/hydraulic power up/power down system, 8 bolt hubs, heavy duty jack, 6” channel frame and tongue. Rear 16’ tilts, front 4’ stationary. 10º loading angle.
Models Available: 20TFHWT
|
Frame Heavy Tilt Bed Trailer Specifications |
|
|
12V Electric/Hydraulic Power Up & Down |
Power Up & Down |
|
Deck Length |
4’ Stationary, 16’ Tilt |
|
Overall Width |
102” |
|
Width Between Fenders |
81” |
|
Axles |
U-Lube 2 – 7000# Drop |
|
Brakes On All Axles |
Electric |
|
Tire Size |
235/80R16 Radial 235/85R16 Radial LRG on 14,000 # GVWR |
|
Pattern |
8 On 6-1/2 |
|
Adjustable Coupler |
Standard |
|
Hitch Size |
2-5/16” Ball Coupler or Lunette Eye |
|
Hitch Height |
14” – 22” |
|
Bed Height |
23” |
|
GVWR |
12,000# & 14,000# |
|
Payload Capacity (Average) |
8580# on 12K#, 10,500# on 14K |
|
Floor |
2” Treated Wood |
|
Front Jack |
12,500# |
|
DOT Lighting |
Standard |
|
Break-Away Kit with Battery |
Standard |
|
Cross Members |
3” Channel on 18” Center |
|
Frame Rails |
6” Channel |
|
Stake Pockets |
Standard |
|
Full Primer & Paint |
Standard |
|
Three-Year Warranty |
Standard |
|
Sealed Beam Tail Lights |
Standard |
|
D-Rings |
6 Rings |
* Specifications subject to change.
Trailer Specifications Sheet – View Specificaitons For All Trailers (PDF document)
Model Numbering Explanation.
